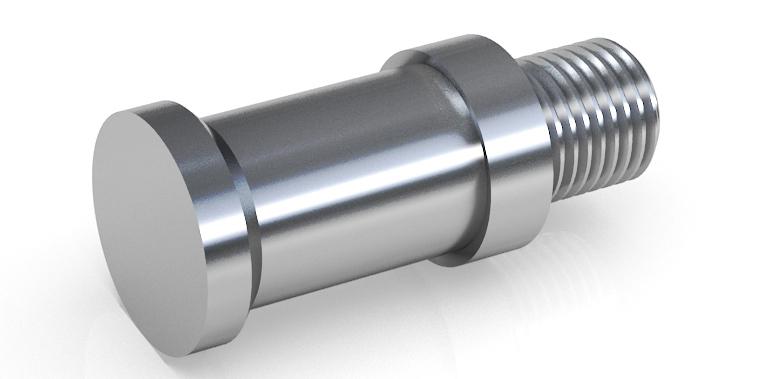

1 Type UN Thread Connections

Type UN Thread Connections

Thread Data

Fishneck O.D.

5/8〞-11UN

1.000〞

15/16〞-10UN

1.187〞

15/16〞-10UN

1.375〞

1 1/16〞-10UN

1.750〞

1 1/16〞-10UN

2.313〞

1 9/16〞-10UN

2.313〞

1 1/16〞-10UN

3.125〞

1 9/16〞-10UN

3.125〞

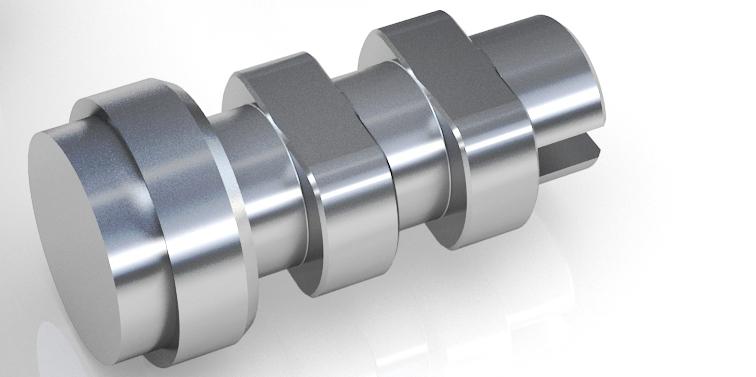

2 Type Q Quick Connections

Type Q Quick Connections

Tools O.D.

Fishneck O.D.

1 1/4〞

1.187〞

1 1/2〞

1.375〞

1 7/8〞

1.750〞

1 7/8〞

2.313〞

2 1/2〞

2.313〞

2 1/2〞

3.125〞

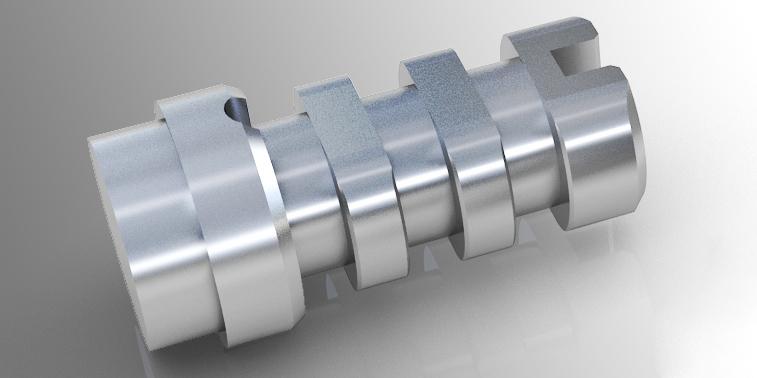

3 Type P Quick Connections

Type P Quick Connections

Tools O.D.

Fishneck O.D.

1 1/4〞

1.187〞

1 1/2〞

1.375〞

1 7/8〞

1.750〞

1 7/8〞

2.313〞

2 1/2〞

2.313〞

2 1/2〞

3.125〞
